Description

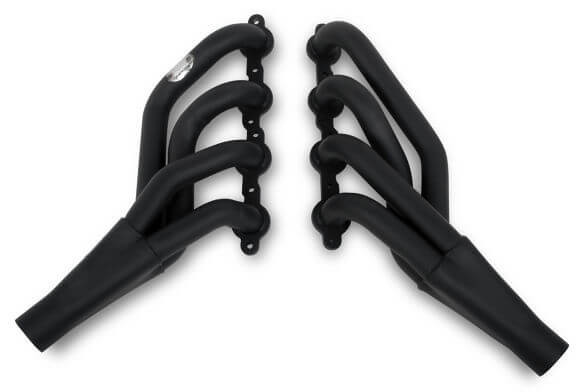

1970-1974 GM LS 2nd Gen (Camaro/Firebird) Tube Size 1-7/8, Collector Size 3, Port Shape - round. Black Ceramic Coated
1970-1974 GM LS 2nd Gen (Camaro/Firebird) Mid Length Engine Swap Headers for hot LS1/LS6/LS2 (cam,heads,nitrous),stock 6.2L(L92)Vortec truck, stock LS3 or all supercharged LS/Vortec engine swaps requiring maximum ground clearance. Not legal for use on pollution controlled motor vehicles.
Features:
Premium fitment with optimized ground clearance
Laser cut 3/8" flanges with flat-finished TIG welded port sealing
1-7/8" primaries/3" collectors
Designed and intended for installation only with Hooker LS swap engine mounting brackets and transmission crossmembers for this application. Will not install with any other brand of mounts
Compatible with Quick Time™ bellhousings (hydraulic clutch only, stock A/C evaporator case on firewall, straight boot spark plug wires and Holley LS swap oil pan and accessory drive brackets
Connects directly to Hooker 3" 2nd-gen F-body exhaust system through the use of an available mid-pipe kit
Compatible with stock or half-height subframe/body mounts
Automatic and manual transmission compatible
Will not install with factory column shift linkage. Lokar or similar aftermarket shift cable or linkage required for column shift applications.
Constructed of lightweight 18-gauge tubing
Specs:
Application: 1970-1974 Camaro/Firebird
Bolt Size: M8 x 1.25 x 25mm
Brand: Hooker BlackHeart
CARB (California) Compliant: No
Collector Diameter: 3.00 inch
Emission Code: 4
Engine: GM Small Block Gen III/IV (LS Based)
Exhaust Series: Hooker BlackHeart
Finish: Black Ceramic
Header Finish: Black Ceramic
Header Style: Mid Length
Material: Mild Steel
Primary Tube Dia.: 1-7/8 inch
Product Type: Headers
Subframe: Stock
Tube Material: Mild Steel
Type of Component: Headers
Warning: California Proposition 65
Warranty: Limited Lifetime Warranty
Installation Notes:
Breaking in an engine with ceramic coated headers WILL result in damage to the coating and will VOID all warranties. Hooker recommends using cast iron exhaust manifolds or old headers during your engine break-in period to avoid damaging your coated damage. Please call Hooker tech service at 270-781-9741 for additional information regarding ceramic coated exhaust products. The use of header wraps can cause the header tubes to crack or rust due to excessive heat and moisture build-up. Hooker BlackHeart does not recommend the use of header wraps as this will void the warranty.
NOTE: These headers were not designed for bolt-in compatibility with a 4L80 transmission. The ears on the side of the transmission would have to be trimmed for clearance to permit the installation of these headers.
